Automated Panel Matching Machine for Radiator Panel Production Line

FOB Reference Price:Get Latest Price
US $15,294-23,000 / Sets | 1 Set/Sets (Min. Order)
Model Number:
PR03
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
Fivestar
Condition:
New
After-sales Service Provided:
Engineers available to service machinery overseas
Product name:
Automated Panel Matching Machine for Radiator Panel Production Line
Color:
Customer Requirement
Warranty:
12 Months
Usage:
Production
Type:
Standard
Voltage:
380V
Specification:
CE, CCC,SGS
Package:
Wooden Case
Application:
Panel radiator production line
Model Number:
PR03
Supply Ability
Supply Ability:
100 Set/Sets per Year
Packaging & Delivery
Packaging Details
PE shrinking inner Wooden packing outside or customer requirements
Port
Shanghai

Model No: PR03

 Automated Panel Matching Machine for Radiator Panel Production Line

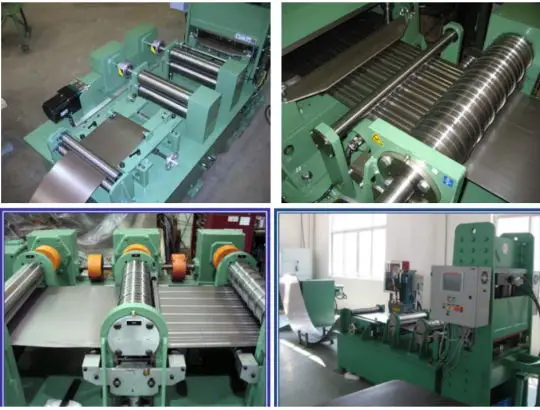

1, Product Picture


2.Description

It is designed to position 2 halves of the panel assembly in the correct orientation to each other for further processing through the production line.



3, Specification:

Maximum length of panel

> 3,000 mm

Minimum length of panel

 500 mm

The thickness of the assembled panel, flange to flange

 40 mm

Cold rolled steel thickness

 1.0 - 1.2 mm

Cold rolled steel width

230 (231), 375 (377), or 520 (523)mm

Operating Condition

10 - 35 deg C, 10 - 85% RH

Pneumatic Connection

90 psi (6 bar)

Hydraulic power pack

To suit customer requirements



4, Main Component:

Pneumatics

SMC / Airtac

Control

Mitsubishi

Servo Systems

Mitsubishi

Linear Bearings & Actuators

THK/Hiwin

Electrical

 Omron

Fasteners

Metric, zinc plated



5, Application:
