Drum Overlap Pressing Machine for steel drum body making

FOB Reference Price:Get Latest Price
  • 1 - 2 Sets
    US $500000.00
  • >=3 Sets
    US $200000.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
Fivestar
Condition:
New
After-sales Service Provided:
Engineers available to service machinery overseas
Name:
Drum Overlap Planisher Machine
Material:
Steel
Model No.:
OP1050-500
Stroke:
0-1025 mm
Press Pressure:
0-15MPa
Max overlap width:
5 mm
Air Pressure:
0.6 MPa
Drum diameter:
550-600MM
Production rate:
500 dph
Weight:
7500kg
Supply Ability
Supply Ability:
60 Set/Sets per Year
Packaging & Delivery
Packaging Details
Normal woden packing or as customer request
Port
shanghai
Lead Time :
90 working days after deposit or L/C at sight

Product Description


 Product Application

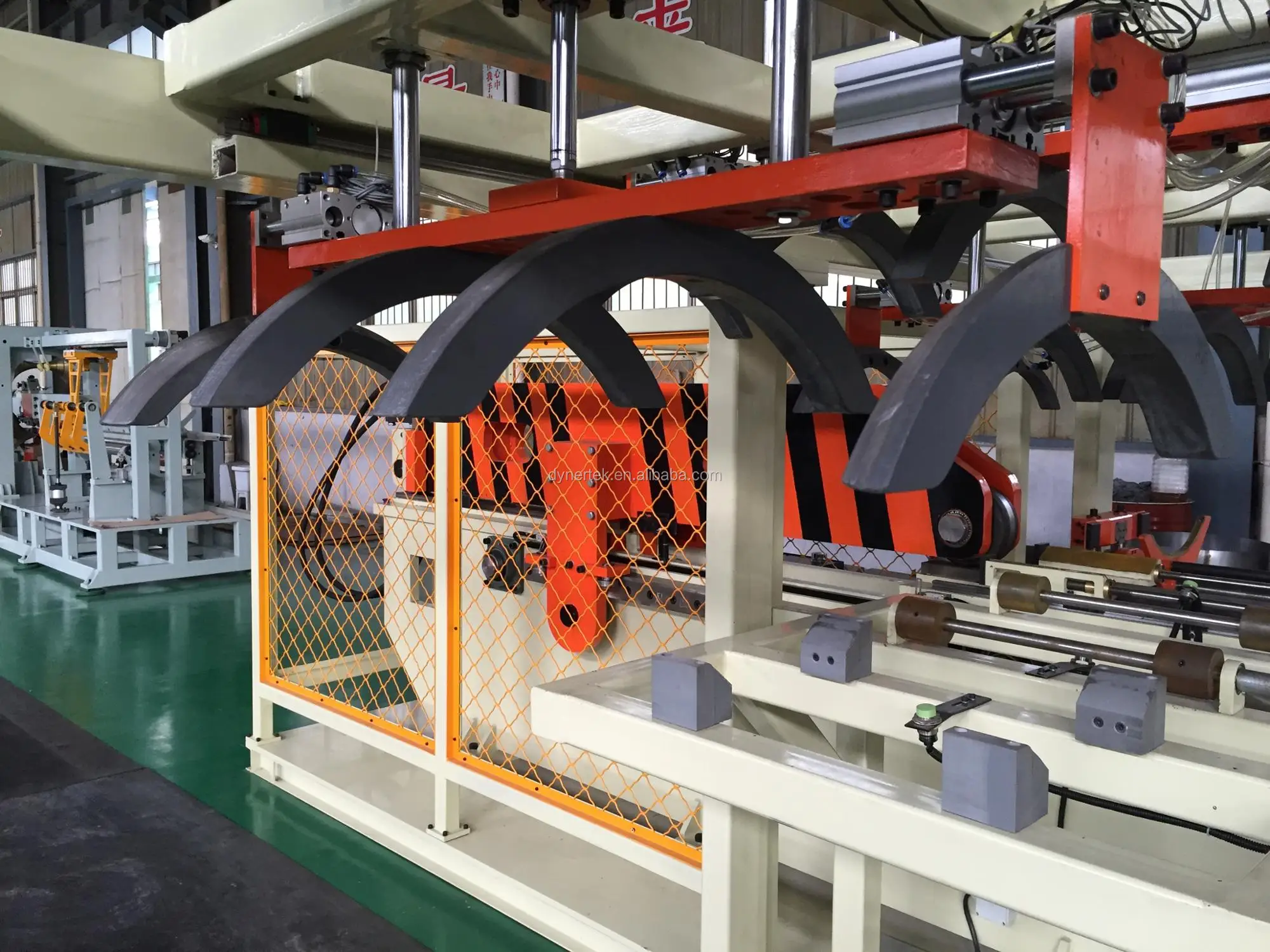

Drum Movement Group

- Catch one drum at a time, from the exit conveyor of customer’s welder and transfer the drum onto wait station

-step by step transfer of four the drums at a time:

-one drum from the welder’s exit conveyor to wai for the station,

-one drum from the wait station to the positioning station,

. another drum from the positioning to the working (overlap planisher)

Drum Overlap Positioning Group

- rotation of the drum until an appropriate sensor will detect the overlap on the drum and will stop

Overlap Planisher Group

- the overlap is pressed at a pre-set length and pressure

Tongue cut Group

- The tongues at both ends of overlap are cut at a time and then the drum is pushed to next work station



Specifications



 Drum Diameter Range

550-600 mm

 Max overlap width

5 mm

 Production Rate

 500 dph
