250KVA 380V 50Hz drum barrel hoop forming making machine

FOB Reference Price:Get Latest Price
US $20,000-30,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
Fivestar
After-sales Service Provided:
Engineers available to service machinery overseas
Product name:
250KVA 380V 50Hz drum barrel hoop forming making machine
Material:
Mwtal
Input Power:
380V 50Hz
Rated capacity:
250KVA
Transformer primary voltage:
380V
Transformer secondary voltage:
7.8V
Rated load duration:
50%
Warranty:
12 Months
Air consumption:
1000L/MIN
Model Number:
FSTGJ600
Supply Ability
Supply Ability:
40 Set/Sets per Month
Packaging & Delivery
Packaging Details
Normal packing with PE shrink film or as customer's request
Port
Shanghai
Lead Time :
1 Month

Model No: FSTGJ600



Metal Drum Hoop Former Machine Barrel Hoop Forming Machine

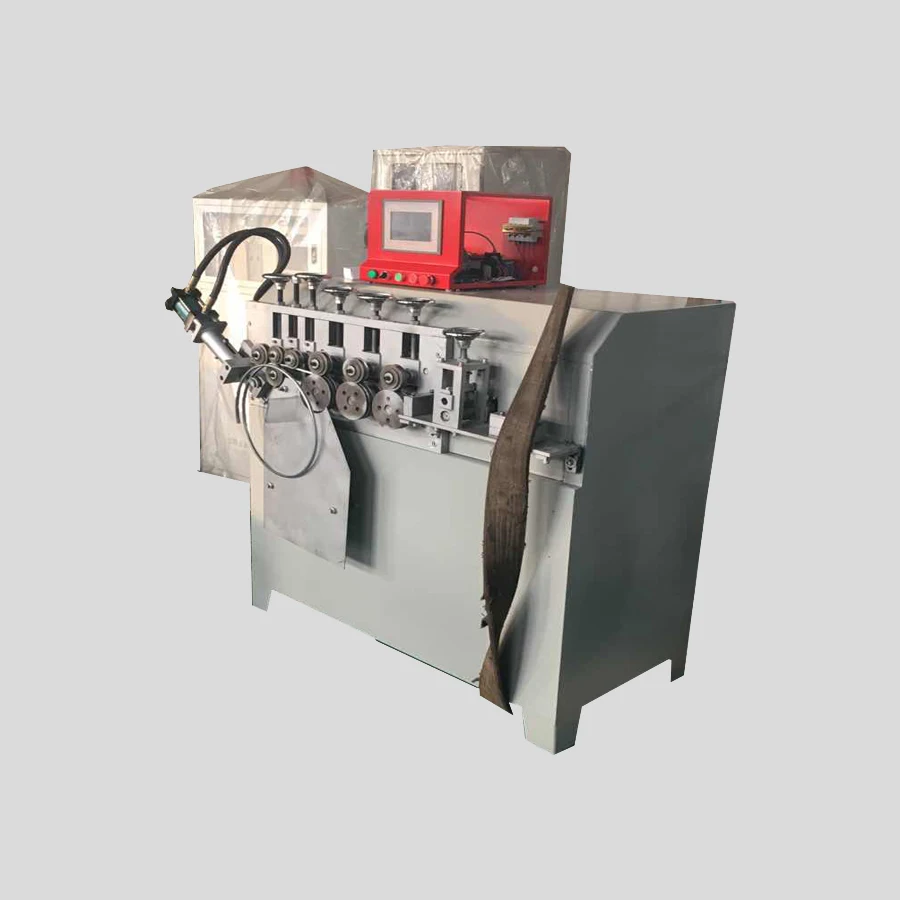

Product Picture




Specification

Input power

380V 50Hz

Rated capacity

250KVA

Transformer primary voltage

380V

Transformer secondary voltage

7.8V

Rated load duration

50%

Pneumatic system rated pressure

0.6MPA

Air consumption

1000L/min

Maximum weld thickness

2.5+2.5mm

Central height

680mm to be determined

Electrode maximum pressure6000N



Feature

Automatic form and cut into a hoop.

One machine for different hoops making,by changing moulds on machine.

Program control for easy operation and set up.
