Automatic Cut to Length Line For Sheet Materials Steel barrel
Drum Diameter Range:
Drum Length Range:
1.0 - 1.2 mm
Food, Beverage,Commodity, Chemical
60 Set/Sets per Year
Packaging & Delivery
Normal woden packing or as customer request
Cut to Length Line Description
Cut to length lines for sheet materials. Both slitted or coil materials can be cut to a given length with our machinery.
Cut to length Line Definition
A flat sheet material is not actually produced as a flat sheet. A cut to length line uncoil the material, level it and cut it to the required length. The end product is cut to a very precise length tolerance. When using cut to length line, there are a few important points; like thickness, type and length of the material.
Users need more precision during cutting in metal cutting operations day to day. Cut to length process is important in the steel drum production.
The cut to length lines gives necessary precision. Also, the line can open the sheets and cut them to the required length for steel drum production. A cut to length line is the first step of the steel drum production line.
Feeding trolley→ un-coiler→ leading and traction head, pinch roll feeding→ high precision leveling device→ cut to length→ unloading table/auto-stacking table

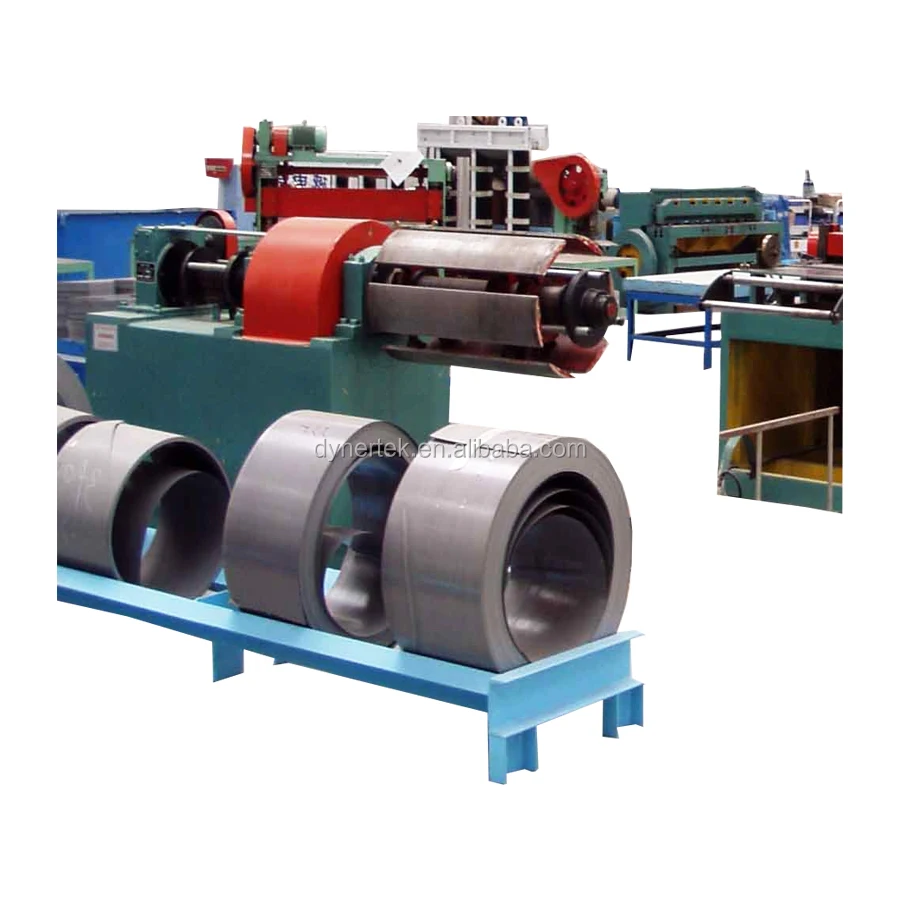

The drum body coil material is cut to the required lengths to create the drum body blanks by the cut to length line. The coil material is uncoiled by the driven un-coiler and fed to the guillotine shear by the straightener-feeder. The cut blanks are collected in the stacker. The empty pallets are placed under the stacker unit and taken out when filled. The edge grinder is also supplied to clean the edges of the blanks to ensure weld quality.
