16KVA quality steel drum making line with 2 to 10 Drums

FOB Reference Price:Get Latest Price
US $15,000-33,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Other
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
Fivestar
Voltage:
380V
Current:
Alternating Current
Rated Capacity:
16KVA
Rated Duty Cycle:
100%
Dimensions:
Depends
Weight:
30kg
Usage:
forms the corrugations on the drum body
Certification:
CCC Certification
After-sales Service Provided:
Engineers available to service machinery overseas
Product name:
16KVA quality steel drum making line with 2 to 10 Drums
Material:
Metal
Driven Type:
Hydraulic
Wave height:
≤3 mm
Stiffener height W:
≤9 mm
Drum Height:
884 mm - 895mm
Distance between W stiffeners:
280mm
Minimum Drum Length:
450-1000mm
Minimum Sheet Thickness:
0.7-1.5mm
Application:
Steel drum making
Supply Ability
Supply Ability:
40 Set/Sets per Month
Packaging & Delivery
Packaging Details
Normal Packing With PE shrink film or as your request
Port
Shanghai
Lead Time :
1 Month

Model No:SDCX-GJ-1

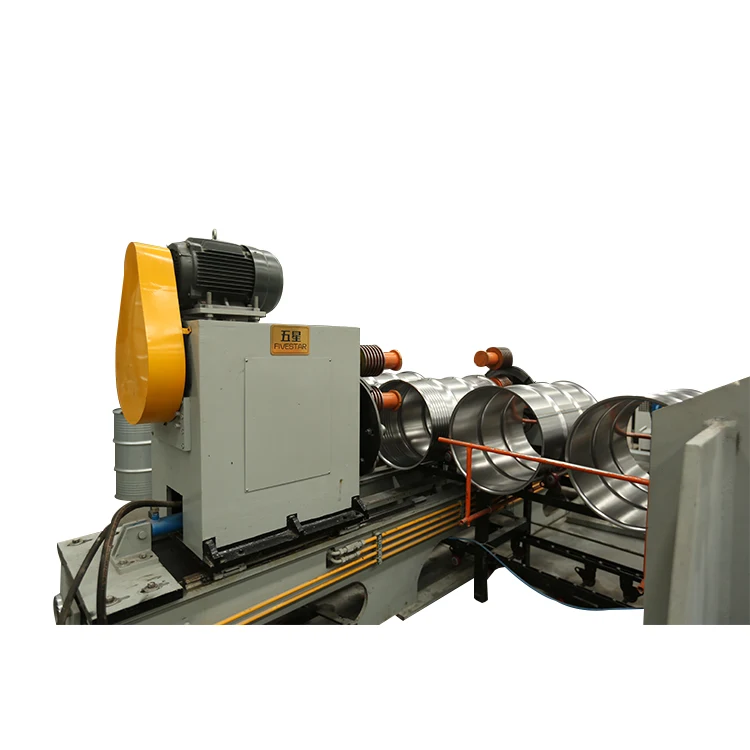

High speed Corrugating Machine production line

Product Picture

 corrugation .jpg

 Specification

Drum diameter range:

500-572mm

Drum length range:

850-1025mm

Drum thickness range:

0.7-1.2mm



Main Component

PLC:

MITSUBISH (Japan)

Transformer:

Fivestar

Servo Drive:

MITSUBISH (Japan)

Weld Controller:

Fivestar (German Technic)

Pneumatic Components:

AIRTAC, SMC (Japan)



Description

The corrugation machine forms the corrugations on the drum body by the rolling the drum body between the tooling that is composed of a pair of spindles with profile rings. The changing the profile rings on the tooling can change the number of the corrugated profile on the body.





Application






Steel Drum Body.jpg
